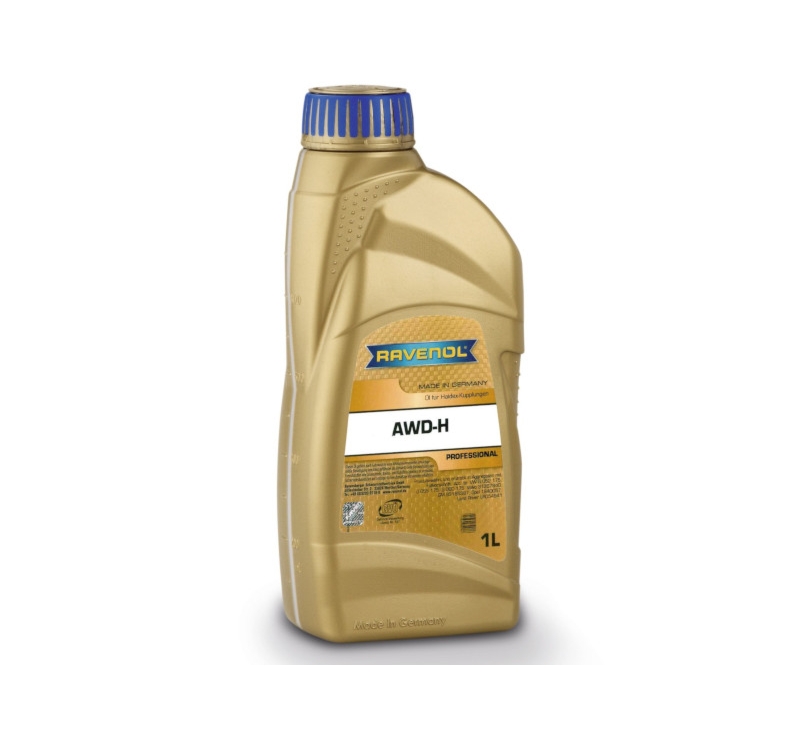

RAVENOL AWD-H FLUID is a high-quality formula of high-performance oils with special additives and inhibitors.

RAVENOL AWD-H FLUID is a special high-performance transmission oil for Haldex's Allroad, Quattro and 4motion powertrains.

How the Hadlex coupling operates: The axle closest to the engine is constantly powered. All-wheel drive powertrains with a Haldex coupling automatically direct engine power to the other axle where required, without any intervention from the driver. Depending on the electronically-controlled blocking effect of the Haldex coupling, a variable proportion of the engine power is transferred to this axle as required.

RAVENOL AWD-H FLUID supports this power transfer process with its outstanding qualities.

Application Notes

RAVENOL AWD-H FLUID is suitable for use with all-wheel drive powertrains with Haldex couplings in AUDI, VOLKSWAGEN, SEAT, SKODA, OPEL, LANDROVER and VOLVO vehicles.

RAVENOL AWD-H FLUID should be changed every 60.000 km in order to avoid damage to the powertrain.

Practice and tested in aggregates with filling

VW G 052 175 A2, G 055 175 A2, G 060 175 A2, Volvo 31367940, GM 93165387, Opel 1940057, Land Rover LR 054941, LR 003136 (Haldex-Öl Baujahr 2011-2014)

Characteristic

RAVENOL AWD-H FLUID offers:

• an excellent flow behaviour at low temperatures
• High, stable viscosity index
• Very good oxidation stability
• Reliable protection against wear, corrosion and foaming
• Excellent coefficient of friction constancy
• High thermal and oxidative stability
• Excellent cooling ability
• Improved shear stability
